CraftiX

Maximum health protection in the case of hazardous dusts.

The new certified safety vacuum cleaners by SPRiNTUS for dust classes L, M and H vacuum where hazardous dust is produced. Directly on the power tool. And all this with automatic filter cleaning with a consistently high level of suction power.

The SPRiNTUS safety vacuum cleaners at a glance.

For an efficient control of Class L, M and H dusts, we offer you the CraftiX model series with a total of six safety vacuum cleaners. In both dust classes, you have the choice between a model with a container volume of 35 and 50 litres.

With the CraftiX models you ensure maximum health protection of the user. The efficient filter cleaning ensures a permanently free filter with a perpetually high level of suction power. This saves you time and money because filter cleaning takes place automatically without suction current and power interruption, even in the case of extreme amounts of fine dust.

Für Stäube der Staubklasse L mit automatischer Filterabreinigung.

Die Sicherheitssauger CraftiX 35 L XC und 50 L XC sind Ihr idealer Partner, wenn Sie mit leicht gesundheitsgefährdenden Stäuben der Staubklasse L arbeiten. Dank der Antistatik-Vorbereitung kann ein optionaler Antistatikschlauch (Art.-Nr. 118143) angeschlossen werden, um elektrostatische Aufladungen zu verhindern. So können gefährliche Funkenbildung, statische Aufladung sowie die Ablagerung von Schmutz im Saugschlauch vermieden werden.

Für gefährliche Stäube der Staubklasse M mit automatischer Filterabreinigung und erweitertem Warnsystem.

Holzstäube, Lackstäube oder sonstige Stäube – die beiden Sicherheitssauger CraftiX 35 M XC und 50 M XC saugen gesundheitsgefährdende Stäube der Staubklasse M ab, bevor sie in die Atemluft
gelangen. Durch die serienmäßige Antistatik-Ausstattung eignen sich die beiden M-Sicherheitssauger hervorragend zum Absaugen großer Mengen Feinstaub direkt am Elektrowerkzeug.

Für gefährliche Stäube der Staubklasse H mit automatischer Filterabreinigung, HEPA 14 Filterpatrone und erweitertem Warnsystem.

Krebserregende Stäube, Stäube mit Krankheitserregern, Stäube mit Bakterien und Asbest – die beiden Sicherheitssauger CraftiX 35 H XC und 50 H XC saugen gesundheitsgefährdende Stäube der Staubklasse H ab, bevor sie in die Atemluft gelangen.

Durch die serienmäßige Antistatik-Ausstattung eignen sich die beiden H-Sicherheitssauger hervorragend zum Absaugen großer Mengen Feinstaub direkt am Elektrowerkzeug.

Please activate "YouTube" to play this video. Further details on the services and cookies used can be found in the Privacy policy. Allow YouTube Videos

Patented filter cleaning

(1) Dealing with hazardous dusts requires innovative product developments. The heart of the CraftiX XC is the patented HEPA 13 cartridge filter.

(2) It consists of two independent filter chambers, which are cleaned one after the other. Suction current and suction power thus remain at a consistently high level even during cleaning, which guarantees permanent suction.

(3) Filter cleaning is carried out by air backwashing and, thanks to the patented cartridge filter, ensures that the fine pores of the filter are freed from dust without leaving any residue. The maintenance and cleaning of the filter is no longer necessary and you save time and money.

(4) Filter cleaning takes place automatically every 45 seconds. It is quieter than average and is therefore particularly userfriendly.

Warning device and controls.

With the two CraftiX XC models of dust class M, the suction power is monitored by a warning device. After setting the smallest diameter used in the suction harness, the user is warned by an acoustic and visual signal if the required air flow is not reached. This avoids increased dust pollution of breathable air.

The power tool can be plugged directly into the vacuum cleaner thanks to the integrated socket. Due to the automatic switch on and off, the vacuum cleaner is started automatically or stopped with a lag of 5 seconds.

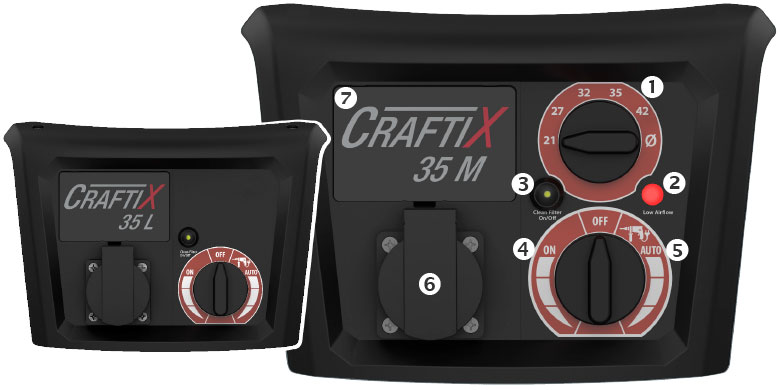

CraftiX 35 XC M/H + 50 M/H

(1) Selector switch hose diameter.
(2) High safety due to warning LED and acoustic warning signal.

CraftiX 35 XC L/M/H + 50 L/M/H

(3) On/off button automatic filter cleaning.
(4) Standard operation with infinitely adjustable power regulation.
(5) Automatic operation with connected power tool and infinitely variable power regulation.
(6) Socket for power tools up to a maximum of 2.200 watts.
(7) Customisation by way of printed logo.

Good reasons for efficient dust control.

Where power tools are used, dust is often produced. Not any type of dust, but harmful fine particles. The dust should be absorbed where it is formed, directly on the power tool.

This is exactly what the robust SPRiNTUS safety vacuum cleaners are designed for. Whether on the construction site or in the workshop, they collect dusts that are hazardous to health at a constantly high level of suction power before it pollutes breathable air. In particular, fine dusts remain in the air we breathe in for a long time and can penetrate deep into the lung tissue. This can lead to asthma and other chronic lung diseases. For this reason, legislators also prescribe the use of certified safety vacuum cleaners at construction sites. With the CraftiX safety vacuum cleaners, you protect the user from these risks. In this way, sawing, drilling, cutting, milling and grinding work can be carried out efficiently and safely without hesitation.

Your application is crucial.

What kind of safety vacuum cleaner is suitable for your application? The dust classes provide the answer to this question. Materials and their dusts are classified according to them and machines are certified, because the vacuum cleaners meet the corresponding requirements for dust control.

Dust class*	Maximum transmittance	Suitable for	Disposal
L	≤ 1,0%	Dusts with OEL** values > 1mg/m3 Domestic dust, soil, lime	—
M	< 0,1%	Dusts with OEL** values ≥ 0,1mg/m³ Wood, screed, primer coat and paint, plaster, cement, concrete, tile adhesive, paints such as latex and oil paints, quartz containing materials such as sand and pebbles	Low dust
H	< 0,005%	Dusts with OEL** values < 0,1mg/m3 Carcinogenic dust, dust with pathogens, dust with bacteria	Dust free
Asbestos requirement	< 0,005%	Dusts with OEL** values < 0,1mg/m3 Asbestos dust	Dust free

*according to the standard: IEC / EN 60335-2-69 **occupational exposure limit value

The overview provides information about the maximum transmittance of a certified vacuum cleaner as well as the legal occupational exposure limit value of the dusts. Class-L dusts are classified as only slightly hazardous, those belonging to Class M are deemed hazardous and those belonging to Class H are regarded as extremely hazardous. No special regulations must be observed when disposing L-dusts. M-dusts, on the other hand, must be disposed of in a low-dust manner and H-dusts must be disposed of in a dust-free manner. Depending on the dust class, the use of fleece filter bags (item no. 102.031) or special PE disposal bags (item no. 118.138) for dust-free disposal is recommended.

CraftiX model comparison

Id
Voltage	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz	220-240 V / 50-60 Hz
Power	1200 W	1200 W	1200 W	1200 W	1200 W	1200 W
Sound pressure level	71 dB(A)	71 dB(A)	71 dB(A)	71 dB(A)	71 dB(A)	71 dB(A)
Max. suction	250 hPa / mbar	250 hPa / mbar	250 hPa / mbar	250 hPa / mbar	250 hPa / mbar	250 hPa / mbar
Volume flow rate	74 litres / sec.	74 litres / sec.	74 litres / sec.	74 litres / sec.	74 litres / sec.	74 litres / sec.
Container material	plastic	plastic	plastic	plastic	plastic	plastic
Container volume	35 litres (gross)	35 litres (gross)	35 litres (gross)	50 litres (gross)	50 litres (gross)	50 litres (gross)
Length power cord	10 m	10 m	10 m	10 m	10 m	10 m
Suction hose Ø 35 mm	5 m	5 m	5 m	5 m	5 m	5 m
Suction hose Ø 38 mm		2,5 m	2,5 m		2,5 m	2,5 m
Suction tube Ø 38 mm
Product weight	16 kg	16 kg	16 kg	17 kg	17 kg	17 kg
Dimensions (L x W x H)	54 x 39 x 63,5 cm	54 x 39 x 63,5 cm	54 x 39 x 63,5 cm	54 x 39 x 77 cm	54 x 39 x 77 cm	54 x 39 x 77 cm

Id
Vacuum tubes, stainless steel, 2 x 0,5 m
Dry floor nozzle 450 mm
Crevice nozzle
Round nozzle Ø 75 mm
HEPA 13 cartridge filter
HEPA 14 cartridge filter	accessoires	accessoires		accessoires	accessoires
Power tool adapter Ø 35 mm
Power tool adapter Ø 21, 25, 32 mm	accessoires	accessoires	accessoires	accessoires	accessoires	accessoires
Power tool adapter Ø 38 mm	accessories	accessories	accessories	accessories	accessories	accessories
Fleece filter bag
Disposal bag	accessories			accessories
Selector switch hose Ø
Acoustic warning signal
Warning LED
Suction hose 5 m, anti-static, oil-resistant	accessories			accessories
Suction hose 5 m
Suction hose 3 m, anti-static, oil-resistant	accessories			accessories

standard equipment
not available

Id

CraftiX XC brochure CraftiX XC brochure

Equipment and accessories

CraftiX 35 L XC (Item no. 118701)
CraftiX 50 L XC (Item no. 118715)

Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, suction hose 5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm

CraftiX 35 M XC (Item no. 118730)
CraftiX 50 M XC (Item no. 118745)

Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 13 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm

CraftiX 35 H XC (Item no. 118760)
CraftiX 50 H XC (Item no. 118775)

Vacuum tubes, stainless steel 2 x 0,5 m with Ø 38 mm, anti-static and oil-resistant suction hose 5 m with Ø 35 mm, anti-static and oil-resistant suction hose 2,5 m with Ø 35 mm, crevice nozzle, round nozzle, dry floor nozzle 450 mm, HEPA 14 cartridge filter, fleece filter bag, disposal bag, rubber mains cable: H07RNF, 10 m, black, power tool adapter Ø 21 / 25 / 32 / 35 mm
